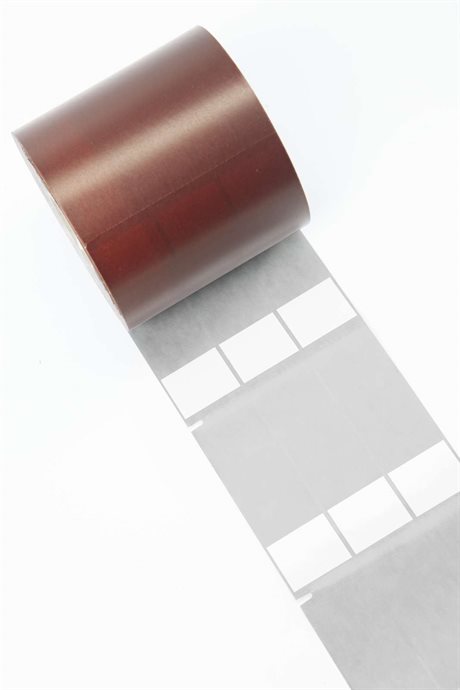

Self-adhesive and self-laminating cable marking labels for thermal transfer printers. Size 32x93 mm. White printable WRITE-ON field of 32x25 mm. Core 38 mm. Material: MT304 transparent vinyl. Reading holes at the left side. The labels are 3-row and each roll contains 1500 labels. The extra transparent part is being wrapped around the cable and laminates the writing field which protects labeling against chemicals and wear.
1500 labels/roll, 1 roll/package
Printing method: thermal transfer, resin ribbon 5095BK or 5095GS
Material: transparent matt vinyl MT304-110, complies with REACH and RoHS regulations.
UL-approved
Expected Exterior life: at least 7 years.
Hole for the printer sensor: located at the left side
Core: 38 mmRoll width: 102 mmRoll diameter: 102 mmThickness: 80 µmAdhesive: Permanent
For cable diameter: 8-20 mm.
List of cable diameters and recommended self-laminating cable labels download here
Service temperature range from -80 ° C to 110 ° C.
Recommended printers:
MK10-EOS2-OEM ( does not work with zebra desktop printers with sensor located centrally )
Recommended thermal transfer ribbon: 110 mm Resin
5095BK or
5095GSRelated software:
PARTEX LABELS CREATOR. Try out for free.
