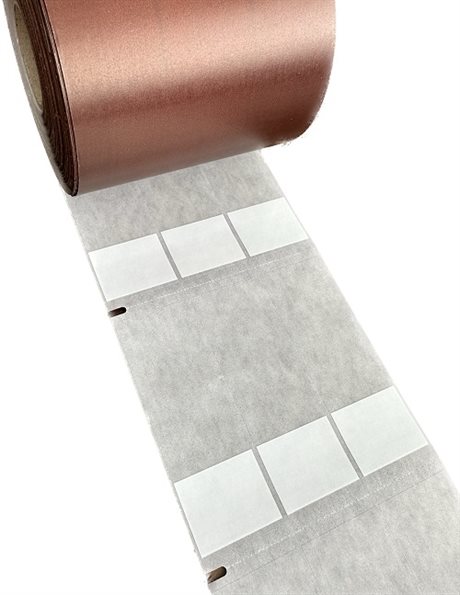

Self-adhesive and self-laminating cable marking labels for thermal transfer printers. Size 25.4x95.25 mm. White printable WRITE-ON field of 25.4x25.4 mm. Core 76 mm. Material: MT304-110 transparent vinyl. Reading holes on edge. The labels are 3-row and each roll contains 3,000 labels. The extra transparent part is wrapped around the cable and laminates the writing field and protects the label against chemicals and wear. 1 roll / package
Printing method: thermal transfer, resin ribbon 5095BK
Material: transparent matt vinyl MT304-110, complies with REACH and RoHS regulations.
UL-approved
Expected Exterior life: at least 7 years.
Hole for the printer sensor: located at the left side
Core: 76 mm
Roll width: 85 mm
Roll diameter: 165 mm
Thickness: 80 µm
Adhesive: Permanent
For cable diameter 8,1-20,6 mm
The label is resistant to temporary exposure to lubricating oil and water.
Service temp. range: -80 °C to +110 °C
Min application temperature: 0 °C
Related label software: PARTEX LABELS CREATOR - try out for free
Recommended printers: CAB MK10-EOS5 ( this label does not work with Zebra desktop printers with sensor located centrally )
