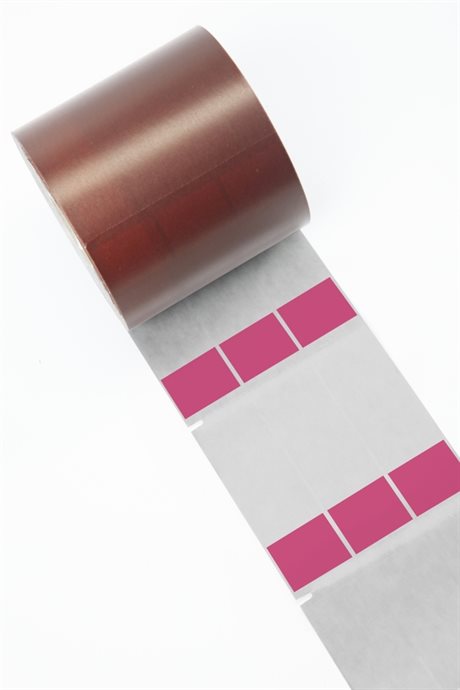

Self-adhesive and self-laminating cable marking labels for thermal transfer printers. Size 32x93 mm. Red printable WRITE-ON field of 30x25 mm. Core 38 mm. Material: MT310 transparent polyester UL approved. Reading holes at the left side. The labels are 3-row and each roll contains 1500 labels. The extra transparent part is being wrapped around the cable and laminates the writing field which protects labeling against chemicals and wear.
1500 labels/roll, 1 roll/package
Printing method: thermal transfer, resin ribbon 5095BK or 5095GS
Material: transparent matt vinyl MT304-110, complies with REACH and RoHS regulations.
UL-approved
Expected Exterior life: at least 7 years.
Hole for the printer sensor: located at the left side
Core: 38 mm
Roll width: 102 mm
Roll diameter: 102 mm
Thickness: 80 µm
Adhesive: Permanent
For cable diameter: 8-20 mm.
List of cable diameters and recommended self-laminating cable labels
download hereService temperature range from -80 ° C to 110 ° C.
Recommended printers:
MK10-EOS2-OEM ( does not work with zebra desktop printers with sensor located centrally )
Recommended thermal transfer ribbon: 110 mm Resin 5095BK or 5095GSRelated software:
PARTEX LABELS CREATOR. Try out for free.
